Portable Aluminum Helipads Remote Access In Steep Terrain

Standard Features Optional Features

Wooden helipad pictured by aluminum replacement Helidek

12x12 Low-Slope 8,000# Max Takeoff Weight

Details

12W x 12L deck area.
Legs telescope in 2" increments with difference from shortest-leg to longest-leg of 0" to 36"
Directional-landing model, assembled weight 795#

Pictured: AStar AS350 B-2 sitting on a wooden helipad that is being replaced by the Touchdown 12x12 Low-Slope

Bell 407 on Aluminum Helipad with adjustable legs to adjust to terrain Helidek

15x16 Low-Slope 8,000# or 12,000# Max Takeoff Wt.

Details

15W x 16L deck area
Legs telescope in 2" increments with difference from shortest-leg to longest-leg of 0" to 36"
8,000# max takeoff weight directional-landing model, assembled weight 1,430#
8,000# max takeoff weight all-direction-landing model, assembled weight 1,980#
12,000# max takeoff weight all-direction-landing model.

Pictured: Bell 407 - Helipad shown with optional all-direction landing

AStar 350 on steep-slope aluminum helipad Helidek Helidex Helideck

Steep-Slope Kits

Details

Increases the difference of shortest-leg to longest-leg to 66"
12x12 kit add 110# to low-slope kit weight
15x16 kit add 180# to low-slope kit weight
Not available for 18x16 8,000#, 15x16 12,000# or 18x16 14,000# max takeoff weight helipads

Pictured: AStar AS350 on 12x12 helipad with steep-slope kit

18x16 ls loadtest1

18x16 Low-Slope 8,000# or 14,000# Max Takeoff Wt.

Details

18W x 16L deck area
Legs telescope in 2" increments with difference from shortest-leg to longest-leg of 0" to 36"
Steep-slope kit not available
Land in all-directions

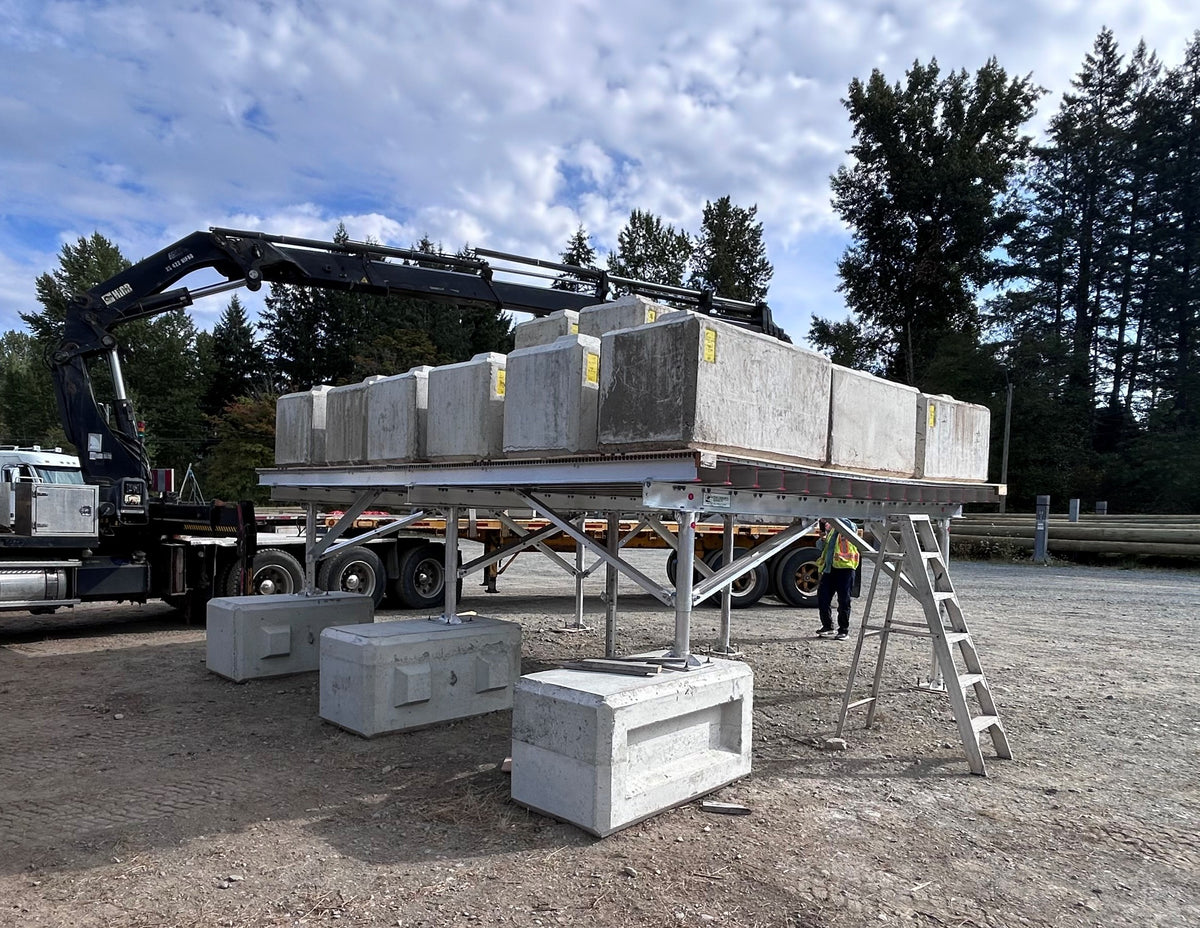

Pictured: Load tested to 88,000# simulating >300#/SF snowload
